Simple 5/8 "10B-1 chain (5 m box)
zoom_out_map
chevron_left chevron_right

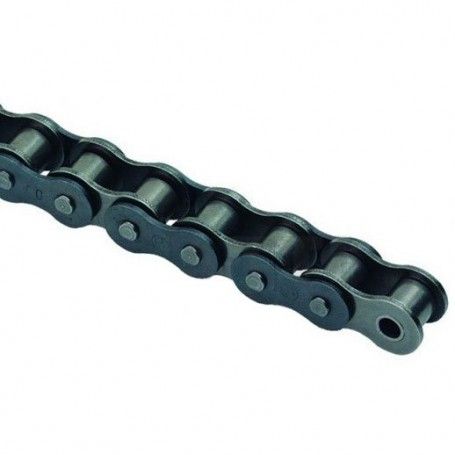

Chain of transmission simple Sati 3/4 x 1/2 inches

Simple transmission chain Sati 3/4'' x 1/2'''.

Chain pitch 19.05(mm), not reinforced, roller 11.91(mm).

€35.66 (tax incl.) €35.66 (tax excl.)
check In Stock
100% secure payments

The simple transmission chain Sati 3/4'' x 1/2'', is a simple mechanical transmission organ, consisting of pins connected to each other by means of plates, with a pitch of 19.05(mm). Its function is to transmit the motion, produced in steel is very resistant and ensures maximum safety and durability in time despite it is not reinforced, the roller is 11.91 mm.

Characteristics of the simple transmission chain Sati 3/4'' x 1/2'' mm:

  • Pitch: 19.05(mm);
  • Type: Simple;
  • Not reinforced;
  • Weight: 1,47(Kg/mt);
  • Roller: 11.91(mm);
  • Internal width b1: 12.70(mm);
  • Pin: 5.94(mm)

The quality of the product is guaranteed by the brand Sati, a leading company in the production of transmission components, gearboxes and motors, which makes its warehouse and its customers its strong point. For years he has been distributing his articles at the international level, becoming more and more a reference point for those looking for a certainty in the results.

SAT12A-1
994 Items
Chain designation
Simple
Chain step
12a (3/4")
Reinforced
No
Roller (mm)
7,93
Material
Steel
pivot
5,94 mm
pivot length
26,42 mm
