Helvi Galileo 211 Easy AC/DC TIG Welder 200A + Kit

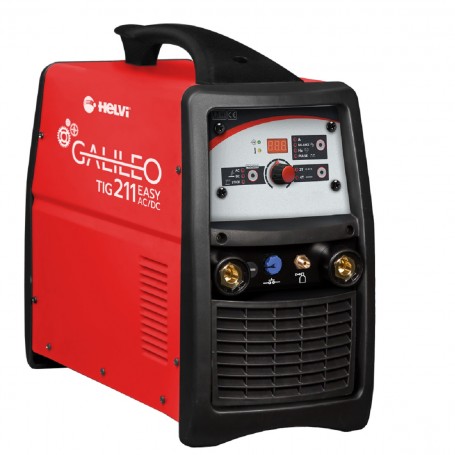

Helvi Galileo 211 Easy AC/DC TIG Welder 200A

The Helvi Galileo 211 Easy is a professional single-phase inverter welder for TIG AC/DC and MMA welding. It is designed for TIG AC welding of aluminium and its alloys and TIG DC welding of steel. MMA mode is also available for electrode welding.

Compact and versatile, it delivers a maximum welding current of 200 A with a 230 V power supply. It is suitable for workshops, maintenance and professional applications requiring precision and accurate arc control.

TIG AC/DC with HF and LIFT ARC ignition

The Galileo 211 Easy can operate in TIG AC, TIG DC and MMA modes. TIG arc ignition is available through HF or LIFT ARC. High-frequency ignition starts the arc without direct contact between the electrode and the workpiece.

TIG AC mode is particularly suitable for welding aluminium and its alloys. TIG DC provides precise welding performance when working with steel.

110/230 V power supply, FLEX-LINE and PFC

Thanks to FLEX-LINE technology, the welder automatically detects the input voltage. It can therefore operate from a single-phase 110/230 V power supply.

At 230 V it delivers up to 200 A in TIG AC/DC and 170 A in MMA. With a 110 V power supply, it delivers up to 140 A in TIG AC/DC and 100 A in MMA.

PFC technology optimises power usage and helps reduce input current requirements. This feature increases the versatility of the machine under different power supply conditions.

Helvi 99806020K kit with accessories

This version is supplied as KIT code 99806020K and includes:

• Helvi Galileo TIG 211 Easy AC/DC power source
• TIG 26 torch, 4 m, 50 mm², 12 pin
• 25 mm² earth cable, 2 m, with 50 mm² connection
• 2 m gas hose kit

Main technical specifications

• Maximum TIG AC/DC current at 230 V: 200 A
• Maximum MMA current at 230 V: 170 A
• Maximum TIG AC/DC current at 110 V: 140 A
• Maximum MMA current at 110 V: 100 A
• Open circuit voltage: 45 V
• Protection rating: IP23S
• Insulation class: H
• Power source net weight: 11.2 kg

The Helvi Galileo 211 Easy is a complete solution for professional TIG AC/DC welding. It is particularly suitable for aluminium applications and combines precision with versatility. Dual-voltage operation and the included accessory kit further extend its range of applications.
