Chain connecting link 3/8 x 7/32 06b

Connecting link for drive chain, simple single link

The pitch is 3/8" x 7/32", corresponding to the ISO 06B-1

Connecting link:

• Material: Steel
• Pitch: 3/8" - 06b1
• Allows the chain to be joined

The connecting link for chains is a type of connection used on articulated chains such as drive chains or timing chains; it allows the chain to be closed and opened, allowing for easy removal, replacement, or overhaul.

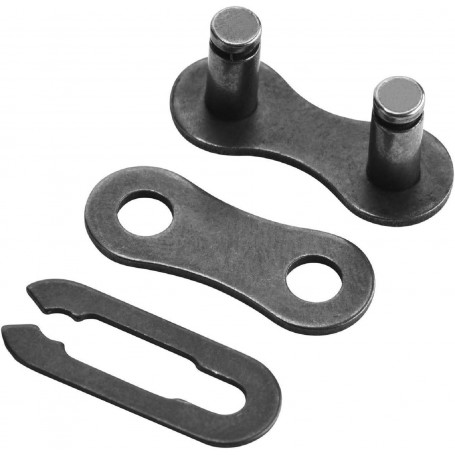

This connecting link has a Clip or Joint, this solution is the most used, simple and safe if used correctly, it is composed of three components, a plate with two pins, which have a groove at the ends, the second component is a movable plate that closes the link and the last component is a clip that fits on the two grooves of the pins, preventing the movable plate from coming out.
