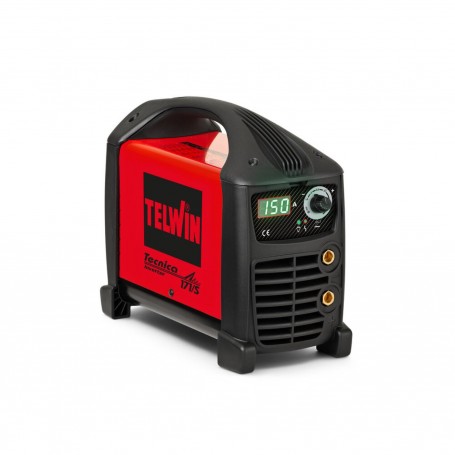

The Telwin Tecnica 171 / s MMA and TIG electrode inverter welding machine is a direct current welding machine that allows electrode and TIG welding with direct current (DC) scratch striking.
It is a compact and handy inverter welding machine thanks to its low weight and small dimensions and it is very easy to transport thanks to its handle and the practical plastic case where the welding machine can be stored together with its accessories.
This welding machine guarantees high performance thanks to its maximum current of 150A and a duty cycle of 25% to 150A.
In case of electric voltage variation it guarantees a high stability of the welding current.
It is also equipped with multiple safety systems:
● thermostatic protection
● overvoltage
● under tension
● overcurrent
● motogenerator (+/- 15%)
This welding machine is among the most popular at a hobby level and is a best seller in its category. It represents a high quality inverter.
It can be connected to the home network due to its low energy consumption.
Hot Start and Arc Force device: better striking of the arc and of the welding bead, in fact it prevents the welding arc from being switched off when the electrode comes into contact with the piece to be welded.
Anti-Stick Device: system that eliminates the problem of electrode sticking.
Electrodes with a diameter of 1.6 - 4 mm.
Usable electrodes: rutile, basic, stainless steel, cast iron etc.
100% Made in Italy product among the best for your Hobbies and DIY.
Product quality is guaranteed by the TELWIN brand: a leading Italian company in the sector
- EAN Code
- 8004897810027
- Maximum Absorbed Current
- 28 A
- Colour
- Red
- Manufacturer Code
- 816203
- Single-phase Network Voltage
- 230 V
- Network Frequency
- 50 / 60 Hz
- Current adjustment range
- 10 - 150 A
- Max current
- 140 A - 25 %
- Current 60%
- 95 A
- Open circuit voltage Max
- 75 V
- Absorbed Current 60% - Max
- 17 A
- Absorbed Power Max
- 4,2 kW
- Power Absorbed 60%
- 2,6 kW
- Mains fuse
- 16 A
- D. Electrodes Usable In Dc
- 1,6 - 4 MM
- Degree Of Protection
- IP23
- Dimensions
- 38 x 48 x 17 CM
- Yield
- 0,86
- Power Factor (Cosphi)
- 0,7
- Weight
- 6,6 kg
- Warranty
- 2 years
- Employment level
- Hobbyist
- Type of welding
- MMA and TIG DC
