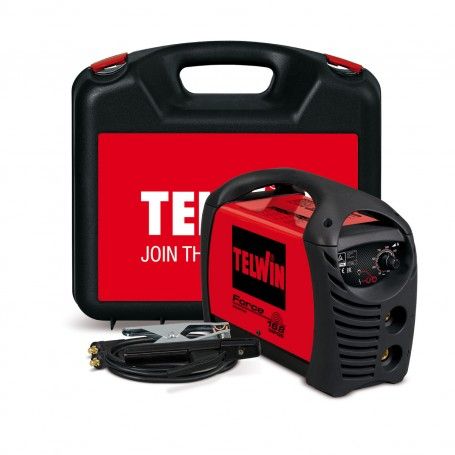

The Telwin Force 168 MMA electrode inverter welding machine is a compact and handy direct current (DC) welding machine, equipped with handle and plastic case for storing all the welding accessories and which makes it easily transportable also thanks to its low weight of 5.5 kg. The Telwin Force 168 MMA Inverter Electrode Welding Machine has a current of 150 A which guarantees great performance . Particularly suitable for use with motor generators as it has multiple MPGE protections to ensure protection against current peaks generally supplied by motor generators.
Features of the MMA Electrode Inverter Welding Machine Telwin Force 168 :
- thermostatic protection
- overvoltage
- undervoltage
- overcurrent
- motor generator (+/- 15%)
- Multiple MPGE protections allowing waveform control
- Filter against input peaks
The machine features the Hot Start and Arc Force Device: better ignition of the arc and of the welding bead, in fact it prevents the welding arc from switching off when the electrode and the piece come into contact to be welded and the Anti-Stick Device: system that eliminates the problem of electrode sticking. The electrodes compatible with the Telwin Force 168 MMA electrode inverter welding machine are: rollers, basic, stainless steel, cast iron.
We also remind you that all welding machines are equipped with a 24 month guarantee, they are all 100% Made in Italy, and we also offer you a first class technical assistance service. order, being able to boast a direct relationship with the parent company and also being able to offer on-site support within our highly specialized mechanical workshop. The quality of the product is guaranteed by the TELWIN brand which for over 50 years has been a historic Italian company, world leader in the sector of production of welding machines, cutting systems, battery chargers and starters. This brand is a guarantee for those looking for solutions conceived, designed and built to give the maximum quality and durability over time.
- Maximum Absorbed Current
- 31 A
- Colour
- Red
- Single-phase Network Voltage
- 230 V
- Network Frequency
- 50 / 60 Hz
- Current adjustment range
- 10 - 150 A
- Max DC current (EN 60974-1)
- 140 @ 20% A
- Open circuit voltage Max
- 72 V
- Absorbed Power Max
- 4,1 kW
- Mains fuse
- 16 A
- D. Electrodes Usable In Dc
- 1,6 - 4 MM
- Degree Of Protection
- IP21
- Dimensions
- 38 x 42 x 17 CM
- Power Factor (Cosphi)
- 0,6
- Minimum motor generator power
- 6 Kw
- Weight
- 5,5 kg
- country of manufacture
- Italy
- Warranty
- 2 years
- Type of welding
- MMA electrode inverter
