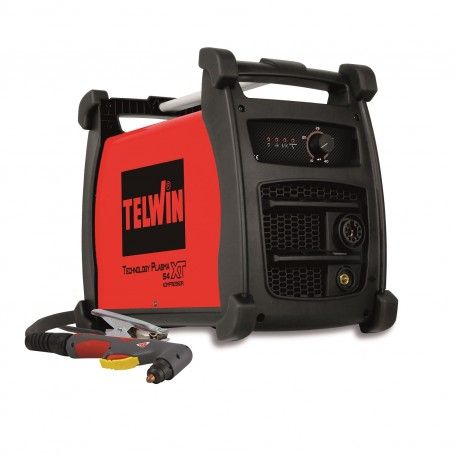

The Inverter Plasma Cutting System Telwin Technology Plasma 54 XT Kompressor is a single-phase Inverter Cutting system. Its peculiarity is that it finds the compressor on the machine, making it easily portable and usable in all those cases in which, outdoors, an air compressor is not available for the correct use of plasma cutting.
Allows you to cut without deforming the materials you are working on: steel, stainless steel, galvanized steel, aluminum, copper and brass with a maximum thickness of 12mm
The Inverter Plasma Cutting System Telwin Infinity Plasma 54 XT Kompressor is specially designed to be used in bodywork, maintenance, workshop operations such as cutting of boxes.
Features:
● air pressure display
● consumable change signaling
● thermostatic protection
● overvoltage
● under tension
● overcurrent
The Inverter Plasma Cutting System Telwin Infinity Plasma 54 XT ompressor has reduced dimensions and weight equipped with a handle to allow easy transport in your work environments or in your garage
100% Made in Italy product among the best for professional use.
The quality of the product is guaranteed by the TELWIN brand which for over 50 years has been a historic Italian company, world leader in the production of welding machines, cutting systems, battery chargers and starters. This brand is a guarantee for those looking for solutions conceived, designed and built to give the highest quality and durability over time.
- EAN Code
- 800489771539 1
- Maximum Absorbed Current
- 27,5 A
- Colour
- Red
- Type
- Plasma sheet metal cutting system
- Manufacturer Code
- 815088
- Single-phase Network Voltage
- 230 V
- Network Frequency
- 50 / 60 Hz
- Current adjustment range
- 7 - 40 A
- Max current
- 35 A - 30 %
- Open circuit voltage Max
- 400 V
- Absorbed Power Max
- 4,5 kW
- Mains fuse
- 16 A
- Degree Of Protection
- IP23
- Dimensions
- 55 x 17 x 34 CM
- Yield
- 0,7
- Power Factor (Cosphi)
- 0,7
- Weight
- 16,45 kg
- Warranty
- 2 years
