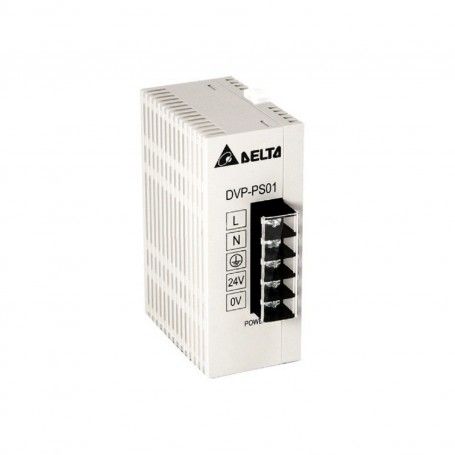

Delta Power Supplies Electronics 24VDC 1A

Delta Power Supplies Electronics 24VDC 1A DVPPS01 Series. Specific product for the industrial automation sector, 24VDC power supply suitable for the construction of electrical control panels, easy and safe to wire for easy installation

€22.75 (tax incl.) €22.75 (tax excl.)
check In Stock
Description

Delta Power Supplies Electronics 24VDC 1A

DVP series & CliQ series power supplies are the latest offering from Delta Electronics. The product offers a nominal output voltage of 24V, a wide temperature range from -20°C to +75°C and a minimum holdup time of 20ms. The state-of-the-art design is made to withstand harsh industrial environments. The rigged, ultra-compact case material is shock and vibration resistant according to IEC 60068-2. The power supply provides overvoltage, overload and thermal protection. The wide input voltage ranges from 85 to 264VAC (1 phase) and 320 ~ 575VAC (3 phase), and the multiple terminals are for fast wiring and easy installation.

Data sheet
DVPPS01
98 Items
Min. Stop time (ms)
20
Operative mode
Switched
Type of track
DIN
Maximum output current (A)
1.0
Maximum output power (W)
24
Input voltage
100 .. 240 Vca (-15% + 10%), 50 / 60Hz
Ripple and Noise
Under 100mVp-p Typical at full load
Operating min temp, Tmin (° C)
-20
Temp max of operation, Tmax (° C)
75
Weight (Kg)
0.158
