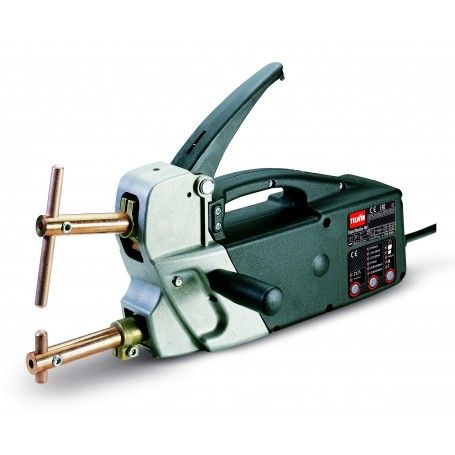

Bodywork Sheet Welding Machine Telwin Digital Modular 400

The Telwin Digital Modular 400 Spot Stapler with controlled resistance is a professional tool for those looking for a quick and efficient solution to their needs, with the brand new high-tech Fuzzy logic system that allows you to increase the quality of the stitch, obtaining maximum yield with minimum effort. The Digital Modular 400 Telwin resistance welding machine (welder) is a 100% made in Italy product, among the best for its function.

The Digital Modular 400 Telwin spot welder with microprocessor controlled resistance, is ideal for thin sheets of stainless steel and mild steel, particularly appreciated in bodywork, it has the pulsed spotting function which is specifically suitable for galvanized sheets and the electronic control of the spot time which makes the use of the machine very precise .

Features of the Digital Modular 400 Telwin Spot Welder:

• Automatic adjustment of the spot current and time according to the thickness of the material
• Selection between continuous and pulsed operation
• Force on the standard arms adjustable from 40 Kg to 120 Kg (standard arms 120 mm)
• Handle with thermal insulating material
• Thermostatic protection
• Microprocessor control Fuzzy logic
• Maximum spot thickness (2 sides) 2+2 mm
• Item dimensions: 440 x 100 x 185 mm
• Item weight: 10.3 Kg

The spot welding of stainless steel and mild steel plates can reach a thickness of 2+2 mm, the variation of the spots per hour depends on the thickness of the material and the type of functioning active (continuous/pulsed), below the number of stitches per hour based on the functioning:

Thickness        Dots/hour

  mm. Continuous-pulsed

0.6+0.6         380-150

0.8+0.8         280-115

1.0+1.0         200-90

1,2+1,2         130-65

1,5+1,5         75-50

2.0+2.0         42-35

All spot welders of the Telwin brand are guaranteed for 24 months from the purchase of the product, it is also possible to take advantage of our technical assistance service, boasting a direct relationship with the parent company of the article (Telwin) and offer on-site support in our highly specialized workshop. Product quality is guaranteed by the Telwin brand, which has been a leader in the production of welding machines, cutting systems, battery chargers and starters for over 60 years. This brand is a guarantee for those looking for solutions conceived, designed and built to give the maximum quality and durability over time.
