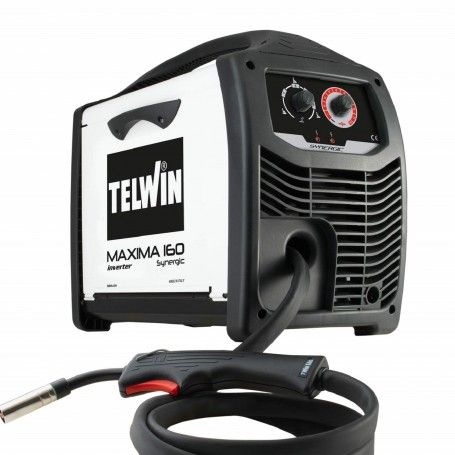

MIG Welding inverter Telwin Maxima 160 Synergic 230V
MIG Welding inverter Telwin Maxima 160 Synergic 230V
Telwin 816085
The Telwin Maxima 160 Synergic welding machine is a continuous wire inverter welding machine which, using the appropriate accessory, can be transformed into MIG MAG for welding with gas.
It is also equipped with a FLUX NO GAS function using the microprocessor controlled synergic cored wire coil.
Thanks to the adjustment of the welding parameters it can be used on different materials (steel, stainless steel, aluminum).
It allows you to weld a coil of maximum 5kg with wires from 0.6 to 1.2 mm.
Easy to carry both in the workplace and for housework thanks to the handle on the top.
It can be connected to the home network.
Equipped with:
- thermostatic protection
- overvoltage
- under tension
- overcurrent
- motor generator
supplied with: TW 160 torch, the ground cable with NO GAS welding gun.
100% Made in Italy product among the best for your Hobbies, DIY and semi-professional use.
- Maximum Absorbed Current
- Colour
- White
- Manufacturer Code
- Single-phase Network Voltage
- 230 V
- Network Frequency
- 50 / 60 Hz
- Current adjustment range
- 20 - 150 A
- Max current
- 115 A - 20%
- Current 60%
- 80 A
- Open circuit voltage Max
- 44 V
- Absorbed Current 60% - Max
- Absorbed Power Max
- Power Absorbed 60%
- 1,2 kW
- Mains fuse
- 16 A
- Degree Of Protection
- IP23
- Dimensions
- 45 x 23,5 x 37 CM
- Yield
- 0,86
- Power Factor (Cosphi)
- 0,7
- D. Steel Welding Wire
- 0,6 - 0,8 MM
- D. Stainless steel welding wire
- 0,8 MM
- D. Aluminum Welding Wire
- 0,8 - 1 MM
- D. Animated Welding Wire
- 0,8 - 1,2 MM
- D. Brazing wire
- 0,8 MM
- Weight
- 9,91 kg
- Warranty
- 2 years
- Employment level
- Semi-professional
