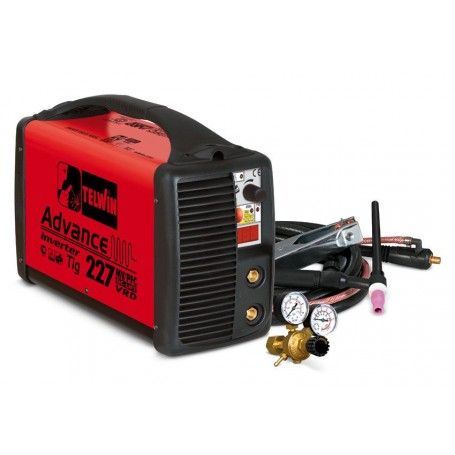

Inverter welding machine MMA TIG DC Telwin Advance 227 Telwin - 1
zoom_out_map
chevron_left chevron_right

Inverter welding machine MMA TIG DC Telwin Advance 227

Inverter welding machine MMA TIG DC Telwin Advance 227

Telwin 852052

€667.00 (tax incl.) €546.72 (tax excl.)
Tax included
new_releases Available

The Inverter Advance 227 MV / PFC welding machine can electrode MMA and TIG direct current DC with scratch start called LIFT start.



Telwin's Advance 227 XT Inverter Welder has a unique feature which is to have the Multivoltage MV / PFC (Power Factor Correction) system that allows you to work with any voltage in the range from 100 / 120V to 220 / 240V included undervoltages and overvoltages. It also guarantees maximum performance even by connecting it to the home socket (230V 16A).

The MMA and TIG Advance 227 XT Inverter Welder also belongs to the Extreme series, the XT series by Telwin created to express power, sturdiness, versatility, capable of surprising from a technical and functional point of view. Professional welders for the most demanding professionals, used to working in the most demanding situations and in the toughest environments.



In addition to being a best seller in its category in terms of performance, this welding machine also guarantees high safety in its use thanks to:

●       VRD system that reduces the output voltage when it is switched on but is not used for welding thus ensuring that the welder is safe if it accidentally comes into contact with the electrode

●       Thermostatic protection

●       overvoltage

●       under tension

●       overcurrent

●       complete protection for motor generators



Telwin's Advance 227 Inverter Welder allows you to work even with unstable voltages.



This welding machine is also light and compact thanks to its weight and small size, it is equipped with a practical aluminum case useful for storing all the accessories and the welding machine itself, so it is easily transportable to any workplace.



Hot Start and Arc Force device: better striking of the arc and of the welding bead, in fact it prevents the welding arc from extinguishing when the electrode comes into contact with the piece to be welded.

Anti-Stick Device: system that eliminates the problem of electrode sticking.

Easy and immediate reading LCD digital panel



Electrodes with a diameter of 1.6 - 4mm

Usable electrodes: rutile, basic, stainless steel, cast iron etc.



100% Made in Italy product among the best for professional use.

We also remind you that all welders come with a 24-month warranty, they are all 100% Made in Italy and we are able to offer a first-rate technical assistance service, being able to boast a direct relationship with the parent company and being able to offer also on-site support within our highly specialized mechanical workshop.



The quality of the product is guaranteed by the TELWIN brand which for over 50 years has been a historic Italian company, world leader in the production of welding machines, cutting systems, battery chargers and starters. This brand is a guarantee for those looking for solutions conceived, designed and built to give the highest quality and durability over time.

852052
8004897905099
Maximum Absorbed Current
33(25) / 27(19) A
Colour
Red
Single-phase Network Voltage
100-120 / 200-240 V
Network Frequency
50 / 60 Hz
Current adjustment range
10 - 120(150) / 10 - 200 A
Max DC current (EN 60974-1)
30% A
120 @ 30%(150 @ 30%) / 200 @ A
DC current
95(125) / 125(135) A
Open circuit voltage Max
81 V
Absorbed Current 60% - Max
24(20) / 16,5(11) A
Absorbed Power Max
3,1(2,4) / 5,2(3,6) kW
Power Absorbed 60%
2,3(1,9) / 3,2(2,1) kW
Mains fuse
15 (20) / 16 A
D. Electrodes Usable In Dc
1,6 - 4 mm
Degree Of Protection
IP23
Dimensions
45 x 18,1 x 29,2 cm
Yield
84 %
Power Factor (Cosphi)
0,98
Minimum motor generator power
5 / 8 kW
Weight
11,8 kg
Warranty
2 years
