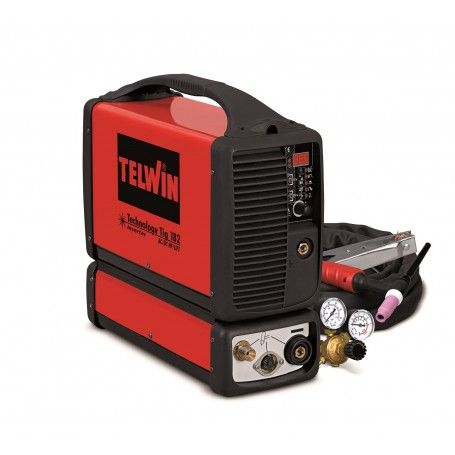

The Inverter Technology 182 welding machine by Telwin is a welding machine useful for electrode welding MMA and TIG (with HF or LIFT high frequency ignition). Microprocessor controlled in direct and alternating current AC / DC, therefore specifically for welding aluminum.
Telwin's Technology 182 inverter welding machine guarantees high performance and great performance, has a single-phase 230 V power supply with a maximum power of 160A. It can be used to weld various materials such as steel, stainless steel, titanium, copper, nickel and their alloys, aluminum.
Its use is of a professional type and ideal welding machine for accurate and safe TIG welding
Features
● Thermostatic protection
● Overvoltage
● Under tension
● Overcurrent
● 2/4 stroke operation
● provision for remote control
● TIG adjustments: bi-level, balance, pre gas, post gas, ramps / square wave frequency
● MMA adjustments: Arc Force and Anti Stick
Hot Start and Arc Force device: better striking of the arc and of the welding bead, in fact it prevents the welding arc from extinguishing at the moment of contact between the electrode and the piece to be welded.
Anti-Stick Device: system that eliminates the problem of electrode sticking.
Electrodes with a diameter of 1.6 - 3.2 mm
Usable electrodes: rutile, basic, stainless steel, cast iron etc.
Telwin's Technology 182 inverter welding machine is powerful and performing suitable for professional use
Flexibility of use with the most varied types of electrodes: rutile, basic, stainless steel, cast iron, cellulosic, etc.
Telwin's Technology TIG 182 AC / DC inverter welding machine is easy to transport to your workplaces thanks to its practical handle.
100% Made in Italy product among the best for professional use.
We also remind you that all welders come with a 24-month warranty, they are all 100% Made in Italy and we are able to offer a first-rate technical assistance service, being able to boast a direct relationship with the parent company and being able to offer also on-site support within our highly specialized mechanical workshop.
The quality of the product is guaranteed by the TELWIN brand which for over 50 years has been a historic Italian company, world leader in the production of welding machines, cutting systems, battery chargers and starters. This brand is a guarantee for those looking for solutions conceived, designed and built to give the highest quality and durability over time.
- Maximum Absorbed Current
- 29 A
- Colour
- Red
- Single-phase Network Voltage
- 230 V
- Network Frequency
- 50 / 60 Hz
- Current adjustment range
- Max DC current (EN 60974-1)
- DC current
- Open circuit voltage Max
- 400 V
- Absorbed Current 60% - Max
- 18 A
- Absorbed Power Max
- Power Absorbed 60%
- Mains fuse
- 16 A
- D. Electrodes Usable In Dc
- 1,6 - 3,2 MM
- Degree Of Protection
- IP23
- Dimensions
- 43 -17 - 34 CM
- Yield
- Power Factor (Cosphi)
- 0,7
- Weight
- Warranty
- 2 years
