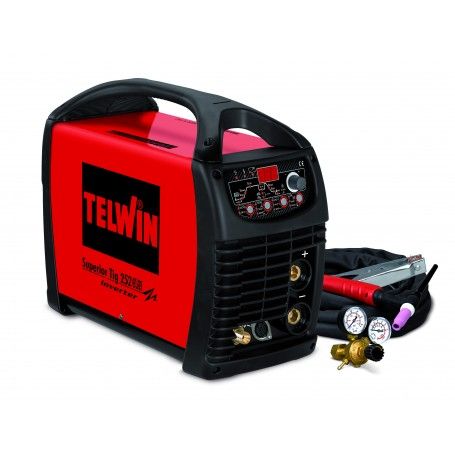

The TIG SUPERIOR 252 AC DC microprocessor controlled inverter welding machine allows you to weld with high frequency HF or LIFT, PULSED TIG and MMA in direct and alternating current (AC / DC).
The welder has a three-phase power supply and a current regulation range of 5-250A
The TIG SUPERIOR 252 AC DC microprocessor controlled inverter welding machine can be used with different types of materials such as stainless steel, titanium, copper, nickel and their alloys, aluminum, magnesium and their alloys.
Features:
● pulsed and pulsed EASY operation
● adjustable pre-heating for easy AC ignition
● TIG adjustments: bi-level, initial / final current, spot time, post gas, pre gas, current rise and fall ramp, DC AC balance, square wave frequency
● THINSPOT utility for fast and precise spot welding
● VRD device
● provision for remote control and GRA cooling unit
● thermostatic protections
● overvoltage
● under tension
● overcurrent
In particular, the EASY PULSE function is a very useful function that allows even the less experienced operator to be able to weld in pulsed mode thanks to the automatic adjustment of the parameters.
Furthermore, SMART AUTO CONTROL is the intelligent monitoring system for optimal operating conditions and safeguarding all the functions of the machine with alarms and protections.
The TIG SUPERIOR 252 AC DC microprocessor controlled inverter welding machine is supplied complete with TIG welding accessories.
Hot Start and Arc Force device: better striking of the arc and of the welding bead, in fact it prevents the welding arc from extinguishing at the moment of contact between the electrode and the piece to be welded.
Anti-Stick Device: system that eliminates the problem of electrode sticking.
100% Made in Italy product among the best for professional use.
We also remind you that all welders come with a 24-month warranty, they are all 100% Made in Italy and we are able to offer a first-rate technical assistance service, being able to boast a direct relationship with the parent company and being able to offer also on-site support within our highly specialized mechanical workshop.
The quality of the product is guaranteed by the TELWIN brand which for over 50 years has been a historic Italian company, world leader in the production of welding machines, cutting systems, battery chargers and starters. This brand is a guarantee for those looking for solutions conceived, designed and built to give the highest quality and durability over time.
- EAN Code
- 8004897918006
- Maximum Absorbed Current
- 12,2 A
- Colour
- Red
- Manufacturer Code
- 816117
- Single-phase Network Voltage
- 400 V
- Network Frequency
- 50 / 60 Hz
- Current adjustment range
- 5 - 250 A
- DC current
- 115 A
- Max current
- 230 @ 20 % A
- Open circuit voltage Max
- 102 V
- Absorbed Current 60% - Max
- 6 A
- Absorbed Power Max
- 7,5 Kw
- Power Absorbed 60%
- 3,3 kW
- Mains fuse
- 10 A
- D. Electrodes Usable In Dc
- 1,6 - 5 mm
- Degree Of Protection
- IP23
- Dimensions
- 47 x 19 x 35,5 CM
- Yield
- 0,85
- Power Factor (Cosphi)
- 0,8
- Weight
- 19,6 kg
- Warranty
- 2 years
