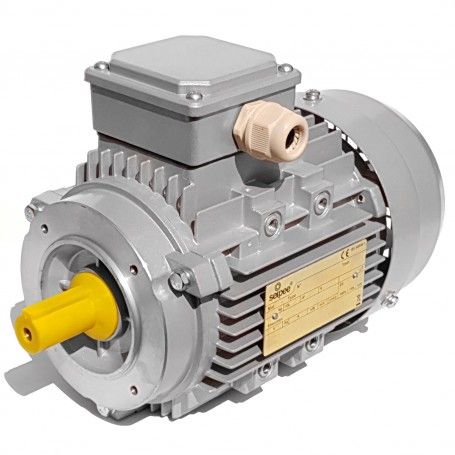

Electric motor three phase 0.09 kW 0.12 HP 1400 rpm B14 MEC 56 230 400v

Electric motor Three phase 0.09 kW 0.12 HP asynchronous 230 400v.
Seipee JM56B4B14.

The electric motor is composed of several nominal characteristics: Power expressed in horsepower or kilowatts (HP, KW), Voltage Current, Power Supply Current, Frequency, Energy Efficiency, Nominal Rotational Speed (number of poles equivalent to the number of revolutions per minute), construction form i.e. mounting (type of mechanical flange connection, presence of feet), shaft diameter, flange diameter, mec/pam height from shaft to plane.
The electric motor is used in various fields of application such as spare parts for workshop power tools, pillar drills, automation, industrial applications, conveyor belt handling. They are constructed with an aluminium casing for low power and a cast iron casing for high power.

• Design B14
• Size PAM/MEC 56
• Shaft diameter 9 mm
• Revolutions per minute 1400 / Poles 4
• Horsepower 0.12 HP / Power 0.09 kW
• Voltage Current 230 400v
• Rated frequency 50-60 hz
• Brand name Seipee
• Product code: JM56B4B14

The Three-phase Electric Motor from 0.09 kW with 0.12 HP asynchronous 230 400v with B14 construction with 1400 revolutions per minute and with 4 poles (and in general all Seipee electric motors) are tested and guaranteed by the parent company, come with a Seipee warranty on all mechanical parts (failure of electrical parts is not covered).
