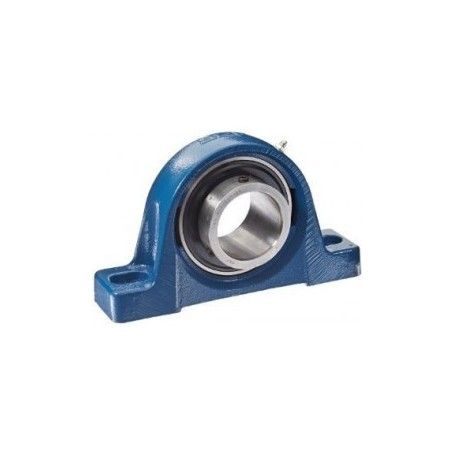

Self-aligning support UCP203

Supports UCP 203, also called straight or upright support, is produced with a cast iron casing, very robust, with typical profile UCP, omega, with two holes through the sides that allow installation on metal carpentry, bound with threaded rod or bolts of appropriate size. Supports UCP 203, have a bearing UC 203, with hole of diameter 17 mm, and external grease gun that allows easy maintenance. They are very versatile and are applied in many construction and production fields, such as in the engineering field. Equipped on the bearing body with a pointed grain for assembly fixation or through shaft. In addition, the UC bearing can oscillate in the cast iron housing of the support in order to eliminate and absorb any small stresses between the bearing and shaft coupling.

Features Supports UCP 203 :

• Type : UCP or straight support or upright support
• Bearing hole diameter : 17 mm
• Lateral bearing seal present for rolling body protection keeping fat inside
• Pre-lubricated : the supports are already greased and ready for assembly
• Almost maintenance free except periodic lubrication with industrial grease

I support UCP 203 brand SIT, are ideal to keep costs down and maintain a high price quality ratio. They are reliable and robust and allow for good mounting versatility. Samma Parts is a distributor SIT, and also available all items related to mechanical transmissions.
