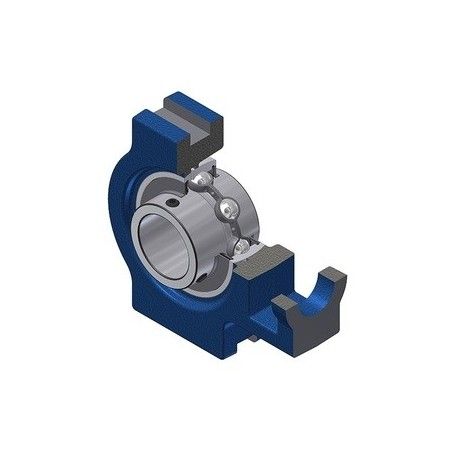

UCT 205 Flanged Bearing Housing Support Chiaravalli
UCT 205 Flanged Bearing Housing Support Chiaravalli
- Weight 0.81 kg
- Dynamic load rating (C) 14 kN
- Static load rating (C0) 7.88 kN
- Operating temperature (min) -20 °C
- Operating temperature (max) 100 °C
- Material Cast iron
- Tightening torque 5.5
- Housing T205
- Insert bearing UC205G2
The UCT 205 flanged bearing housing support is part of the UCT series manufactured by Chiaravalli, a well-established brand known for quality and reliability. The UCT 205 designation identifies the main dimensions and technical characteristics of both the bearing and the housing.
This support consists of a rigid flanged housing with an integrated self-aligning ball bearing, designed to compensate for small shaft misalignments, reducing wear and extending bearing life. Shaft locking is achieved through set screws, ensuring a secure and stable fixing.
The housing is made of cast iron, providing strength and excellent load-bearing capacity. The painted surface finish offers protection against corrosion. The square or rectangular flange with fixing holes allows quick and easy mounting on flat surfaces.
Main specifications:
- Weight 0.81 kg
- Colour Blue
- Material Cast iron
- Dynamic load capacity, C (kN)
- 14
- Static load capacity, C0 (kN)
- 7.88
- Recommended tightening torque for slotted fixing screws (Nm)
- 5.5
- Housing designation
- T205-
- Bearing designation
- UC205G2
- Operating min temp, Tmin (° C)
- -20
- Temp max of operation, Tmax (° C)
- 100
- Material
- Cast iron
- Colour
- Blue
- Weight (Kg)
- 0.81
