Selet OCV86 D6CA Parallelepiped photocell with direct tapping
Plastic housing
Range: D6= 2000 mm
Sensitivity and timing adjustment via trimmer
Setting of delay type and NO-NC function via MINIDIP
Versions with cable output
5-wire PNP / NPN NO / NC and 5-wire DC / AC versions NO / NC relays

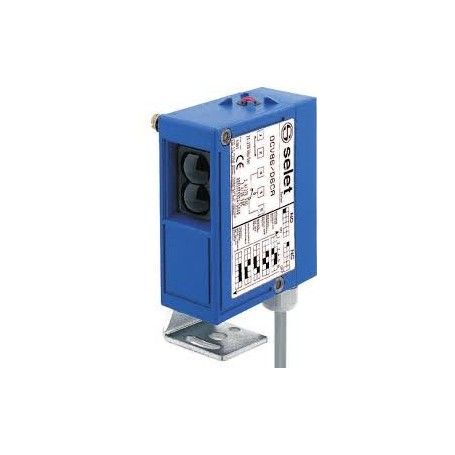

Selet OCV86 D6CA Parallelepiped photoelectric sensor Direct Tactoring
The OCV86 photoelectric sensor, in a parallelepiped plastic housing with the dimensions
dimensions 96 x 81 x36 mm, is available with the following models:
- diffuse (/D6) with adjustable range from 0 ÷ 2 m,
- reflection type (/C) with adjustable range of 8 m,
- transmitted beam (/B and /P) with adjustable range of 30 m.
On the /C, /D6 and /B models, it is possible to activate the following timing settings on the output: delay time
time settings can be activated on the output: on-delay, off-delay, monostable.
delay, monostable.
On /C, /D6 and /B models the red led follows the activation of the NO output.
On /P model the red led signals the sensor power supply.
On models /C, /D6 and /B the red LED flashes at the trigger point.
The red LED on /C, /D6 and /B models flashes at the trigger point to signal low signal.
PROGRAMMING
The photocell is programmed by means of the minidips located inside the container. The wiring of the electrical connections is carried out by means of the terminal board located in the rear cover of the container. To access the programming minidips and the connection terminal block, the rear cover must be removed from the container. Changes to the minidip settings must be made with the terminal block disconnected and the board not powered. For the /D6, /C and /P models, the working distance is adjustable via the multi-turn trimmer A. Adjustment of the output timings is possible via multiturn trimmers B (de-energise/monostable) and C (energise). To access the adjustment trimmers, the metal screw cap on the housing cover must be removed.
